Markforged Desktop 3D Printers from Innova

The Markforged Desktop Series is designed to give any designer or engineer access to stable Onyx parts. Simply determine the material and composition you require and your CAD data will be transformed into perfect parts within hours.

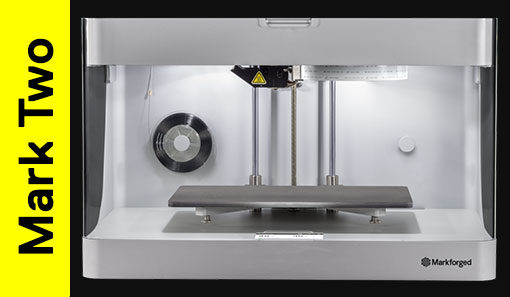

Meet Mark Two, the flagship Desktop 3D Printer from Markforged.

Best-in-class professional carbon fibre composite 3D Printer for aluminium-strength parts.

Built around an aluminium unibody frame that delivers high accuracy and repeatability, the Mark Two features a hardened extrusion system that enables printing with Onyx, a micro carbon fibre-filled nylon filament that destroys traditional extrusion systems, reliably over thousands of print hours. It’s built to be easy to operate and maintain, from easy-to-reach wear components (nozzles/feed tubes) to usability-focused features like the print bed, which can be removed and replaced with 10 μm repeatability.

£15,995 + VAT & Shipping.



Only Markforged composite printers are capable of printing continuous fibre reinforced parts, which can be as strong as machined aluminium.

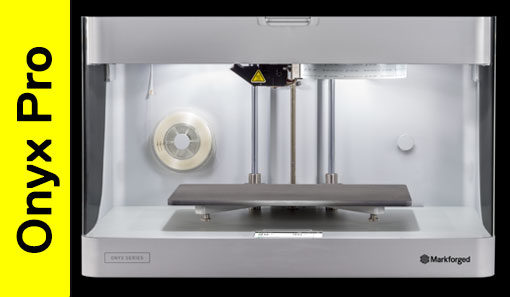

The Onyx Pro Desktop 3D Printer from Markforged.

The workhorse professional 3D printer for continuous fibreglass-reinforced parts.

The Onyx Pro is built around the same Continuous Fibre Reinforcement (CFR) process and aluminium body as the Onyx One and – in addition to the more common FFF features – the Onyx Pro has a 2nd-generation fibre reinforcement system that enables you to lay down continuous Fiberglass into parts. Only Markforged composite printers are capable of printing in this way enabling them to replace machined aluminium parts.

£7,995 + VAT & Shipping.



The Onyx Pro includes a second print head that's used for for producing strong, continuous fibreglass prints.

The Onyx One Desktop 3D Printer from Markforged.

The professional FFF 3D printer for micro carbon fibre filled nylon parts.

The Onyx One is an advanced FFF desktop 3D printer that delivers high accuracy and repeatability using a hardened extrusion system that prints in Onyx. The machine has been constructed with ease of use in mind. Changing components like nozzles and feed tubes is quick and simple and the print bed can be removed and replaced just as easily. If you’re just getting started with 3D Printing, you won’t find better than the Onyx One!

£3,995 + VAT & Shipping.



The Onyx One has a single print head designed to print Onyx components.

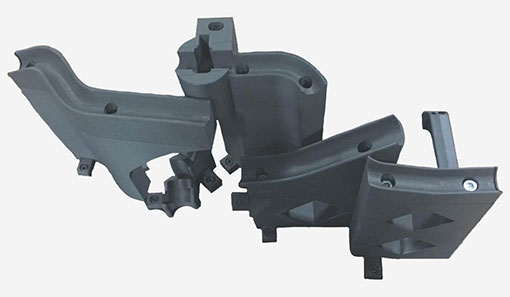

3D printing materials for the Mark Two, Onyx Pro and Onyx One.

For a full breakdown of available materials for our Markforged 3D Printers, please download this datasheet.

Onyx (Composite Base)

Micro carbon fibre filled nylon that forms the foundation of Markforged composite parts.

Onyx, our flagship Composite Base material, is a micro carbon fibre filled nylon that yields accurate parts with impeccable surface finish. Few materials have the versatility of Onyx; it offers high strength, toughness, and chemical resistance when printed alone, and can be reinforced with Continuous Fibres to yield aluminium-strength parts. Today, there are more than a million Onyx parts in the field transforming manufacturing.

Works with: Markforged Mark Two, Onyx Pro, Onyx One.

Nylon (Composite Base)

Smooth engineering thermoplastic that can be easily painted or dyed.

Nylon is an unfilled thermoplastic. It’s a non-abrasive material that is great for ergonomic surfaces and workholding for pieces that are easily marred. It can be painted or dyed.

Works with: Markforged Mark Two.

Carbon Fibre (Continuous Fibre)

The backbone of aluminium-strength composite parts.

Carbon Fibre is Markforged’s unique, ultra-high-strength Continuous Fibre, which – when laid into a Composite Base material like Onyx – can yield parts as strong as 6061-T6 Aluminium. It’s extremely stiff and strong, and can be automatically laid down in a wide variety of geometries by Markforged 3D printers.

Works with: Markforged Mark Two.

Aramid Fiber (Kevlar® Continuous Fibre)

Tough, highly compliant Continuous Fiber for high-impact applications made with Dupont™ Kevlar® Fibre.

Aramid Fibre is a Kevlar® based, specialised Continuous Fibre known for its energy absorption and extreme toughness. When laid into Onyx or another Composite Base material, it yields extremely impact-resistant parts that are nearly immune to catastrophic failure (fracture). It’s perfect for use in parts that are in demanding environments or are subject to repetitive loading.

Works with: Markforged Mark Two.

HSHT Fibreglass (Continuous Fibre)

Thermally resistant Continuous Fibre for strong parts in high-temperature environments.

High Strength High Temperature (HSHT) Fiberglass is defined by two characteristics: high strength (nearly equal to 6061-T6 Aluminium) and strength in high temperatures. Though not as stiff as Continuous Carbon Fibre, Onyx parts reinforced with HSHT are strong at both low and high temperatures. As a result, HSHT reinforcement is best used for parts in high-temperature environments like  moulds, autoclaves, and others.

Works with: Markforged Mark Two.

Fibreglass (Continuous Fibre)

Entry-level Continuous Fibre for industrial applications.

Fibreglass is Markforged’s entry-level Continuous Fibre —a material capable of yielding parts 10x stronger than ABS when laid into a Composite Base material like Onyx. Fiberglass is the flagship material of the Onyx Pro and X5 and printable on the Mark Two and X7, providing a more affordable alternative to Carbon Fibre.

Works with: Markforged Mark Two, Onyx Pro.

Call us now on 01223 783216 for latest prices and availability.

Markforged Desktop vs. Industrial Composite 3D Printers. What's the difference?

As you can see the Desktop Series 3D Printer range from Markforged provides you with a fantastic way to get started with professional quality parts, with a good surface finish using standard materials.

The Industrial Series, on the other hand, offer a much larger build envelope with superior accuracy, resolution and speed across a wide range of materials.

Take a look at this datasheet for a full comparison of the full range of Desktop and Industrial printers to see what each type of 3D Printer is capable of.

Call our 3D Printing team on 01223 783009 for expert guidance.

Case study: 3D printing for lean production at Lean Machine.

Lean Machine specialises in custom machining primarily for the commercial transportation and mining sector. The company had previously used heavy duty steel tooling, which they would usually make in-house. This was not a scalable option for the company, as they found they were spending a large amount of time on internal tooling instead of on customer parts.

To keep costs down and reduce the wear and tear on parts, the team turned to Markforged 3D printing technology for lean production. “We found Markforged by researching for the best printers out there for commercial and industrial quality printing,” says Josh Grasby, R&D Engineer at Lean Machine.

Watch the video to find out more…

Watch: Lean Machine - 3D printing for lean production

Innova Systems: Your trusted Markforged 3D Printer partner in the UK.

Service

From set up and installation to tips and tricks, Innova Systems are always on hand to help you get the best out of your investment.

Consultancy

Not only are we 3D CAD experts, our 3D Printing team can work with you to assess your current process, recommending the best machine for your needs.

Consumables/parts

From composite base to continuous fibre, Innova Systems supply a wide range of strong, durable, and capable materials for Markforged 3D Printers.

Markforged 3D Printers are trusted by these brands.

  • Microsoft
  • Bosch
  • Philips
  • Canon
  • Amazon

Interested in the Markforged Desktop 3D Printer series?
Call us on 01223 200690, or message us below to find out more.
