Enable drawingless operations with model-based design.
SOLIDWORKS MBD is an integrated drawingless manufacturing solution for SOLIDWORKS. It helps companies define, organise, and publish 3D Product Manufacturing Information (PMI) including 3D model data in industry standard file formats such as eDrawings® and 3D PDF.
Unlike traditional 2D drawings, SOLIDWORKS MBD guides the manufacturing process directly in 3D, which helps streamline production, cut cycle time, reduce errors, and support industry standards such as Military-Standard-31000A, ASME Y14.41, ISO 16792, and DIN ISO 16792.
Take a first look at SOLIDWORKS MBD – Watch the video!
Drawingless manufacturing
Streamline production, cut cycle time, reduce errors and support industry standards.
Easily share 3D PMI
Avoid expensive, time consuming and error prone 2D drawings.
Compliance
Meet industry standards such as ASME Y14.41, Military-Standard-31000A, ISO 16792 and more.
Work faster, work smarter.

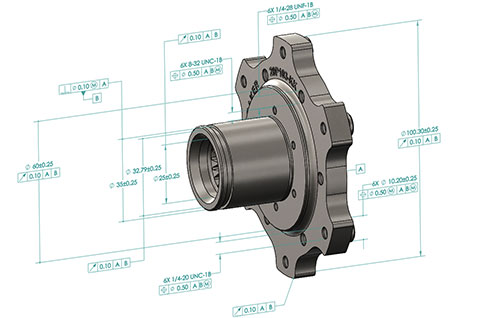

Define PMI directly in 3D.
SOLIDWORKS MBD defines PMI directly in 3D and avoiding the expensive, time-consuming, and risky 2D drawing detour, which can save up to one-third of your total engineering spend. 3D PMI also helps speed up communication, cut quoting time, and reduce errors thanks to its 3D data interrogation, interactivity, and rich Meta properties.
Clean and Structured 3D Presentation.
Beyond 3D PMI Definition, SOLIDWORKS MBD helps organise the rich data into clean and structured 3D presentations with different views and display settings. It can even intelligently show and hide 3D annotations while you rotate the model to give you extra clarity while respecting all the critical-to-function annotations. Messy display? Tedious navigation? Missing annotations? Problems solved!
The template for success.

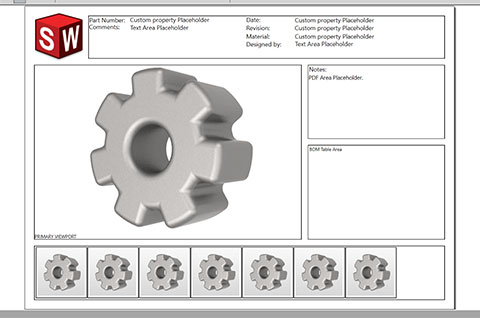

Customise 3D output templates.
Serve multiple deliverables and departments by customising the 3D Output Templates. You can build the layout, insert company or group logo, position the 3D View port and thumbnails, edit the text descriptions, embed Meta property links, and add tables. SOLIDWORKS MBD covers them all.
Once set up, these templates will serve as internal and external process guidelines for all departments, such as Manufacturing, Operations, QA, and Procurement on multiple deliverables, such as engineering drawings, Request for Quote (RFQ), inspection report, and work instructions. In addition, SOLIDWORKS MBD delivers a comprehensive set of predefined templates to use out of the box.
Let's make this simple.

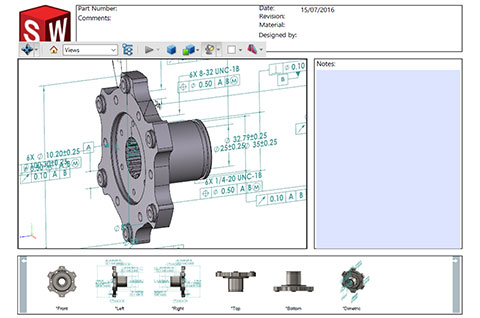

Easy 3D output and distribution.
SOLIDWORKS MBD publishes widely accepted file formats such as eDrawings® and 3D PDF according to the predefined or customized templates. eDrawings files can be opened in a free eDrawings Viewer and 3D PDF can be viewed in a free Adobe Reader which is installed on 93% of Internet connected machines. In addition to 2D information such as engineering notes, BOM, and rich Meta properties (Part Numbers, Materials, and Approvals), you can also interrogate the model in 3D with Pan, Zoom, Rotate, Measure, Section, and other 3D tools. The easy and popular 3D output provides additional clarity to help reduce errors, speed up communication, and cut cycle time.
MBD helps you meet the mark.
Comply with industry standards.
SOLIDWORKS MBD helps comply with the predominant industry standards, such as ASME Y14.41, Military-Standard-31000A, ISO 16792, and so on. This compliance gives you the competitive advantages to win more contracts and deliver projects to strict requirements, on time and on budget.
Customers looking to meet United States Government standards will be encouraged by the assessment of Rich Eckenrode, Co-Chairman of the Military-Standard-31000 manufacturing sub-committee. Mr. Eckenrode defined the MBD requirements for the government procurement officers and has stated: “SOLIDWORKS MBD’s compliance to Military-Standard-31000 Appendix B is close to 100%”.
Better output for easy sharing.

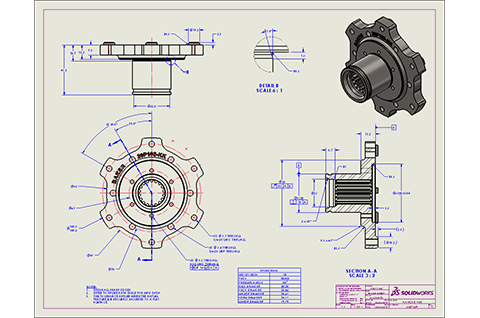

Printouts and 2D drawings.
SOLIDWORKS offers intuitive print support for both native files and 3D output. SOLIDWORKS MBD also delivers print-friendly templates for the best results. Furthermore, SOLIDWORKS MBD seamlessly integrates with SOLIDWORKS 2D Drawings. The PMI and Views created in 3D are readily available for reuse in 2D, which can save you time and fit well into existing processes.
Share and archive intelligent, intuitive 3D data.
SOLIDWORKS MBD helps you share and archive intuitive 3D data, including the models, PMI, views, and Meta properties, so that you and your suppliers don’t have to waste time in re-modelling based on traditional 2D Drawings. With the 3D data, you can upgrade your legacy product configurations to new models much faster and design tooling and fixtures much more easily.
